Communication module, ED-008, BRAINBOXES The Brainboxes Ethernet media converter has 8 non-isolated digital input channels and 8 digital output channels. It offers robust and intelligent ’control side’ devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as the ’process side’. Features Drives high current and high voltage loads

Geared motors type Ekulit GM25-385-M28N-34-14.5D10. Quiet and durable geared motor, with slightly offset input and output shafts; rated voltage: 12 VDC, no-load current: max. 95 mA, holding current: max. 1500 mA, rated current: max. 480 mA, no-load speed: 4,300 rpm, drive speed: 125 rpm, breakdown torque: 6.5 kg/cm, rated torque: 2.0 kg/cm, direction of rotation:

Industrial-ECO-Switch 852-111 from WAGO 5 ports 10/100Base-TX (RJ-45), for TS-35 rail mounting, segmentation for reducing overload on the network and assignment of a separate bandwidth to each user. Features: diagnostics LEDs on the front supports Auto-MDI/MDI-X functions half or full duplex transmission mode per port Store-and-Forward-Switching method integrated Address Look Up Engine (supports up to

Cable connector, straight, socket, A-coding, HARAX® connection technology, polyamide, contacts: 4, brass, gold-plated Cable connector, straight, socket, A-coding, HARAX® connection technology, polyamide, contacts: 4, brass, gold-plated, conductor cross-section: 0.14 … 0.34mm², rated current: 4A, polyamide, zinc die-cast, screw locking, protection class: IP65, when mated, IP67, when unmated The technical features of 21031112405 from Harting at

Power supply TRIO-PS-2G/1AC/24DC/5 Primary switched-mode power supply TRIO POWER with push-in connection for rail mounting, input: 1-phase, output: 24 V DC / 5 A Overview of the technical features of 2903148 from Phoenix Contact Type of supply voltage : BAA161;BAA318 Electrical connection type : Push In connection Output voltage regulated : Yes Output voltage adjustable

Automotive cable connectors, bare, 1 to 6 poles, series Superseal 1.5, type TE Connectivity/AMP 282. For low-voltage applications. Made of polyamide 6.6, to IEC 60529 and DIN 40050-9; Degree of protection: IP 67. Current rating: max. 14 A. Insulation resistance: min. 200 Mohm. Contact resistance: max. 3.0 mohm. Seals: silicon. Contact pitch: 6.0 mm. Operating

Automotive cable connectors, bare, 1 to 6 poles, series Superseal 1.5, type TE Connectivity/AMP 282. For low-voltage applications. Made of polyamide 6.6, to IEC 60529 and DIN 40050-9; Degree of protection: IP 67. Current rating: max. 14 A. Insulation resistance: min. 200 Mohm. Contact resistance: max. 3.0 mohm. Seals: silicon. Contact pitch: 6.0 mm. Operating

Frequency signal conditioner, 857-500, WAGO This frequency signal conditioner collects 0.1–120 kHz signals from NAMUR, NPN or PNP sensors and converts them into a standard analog signal. Features PC configuration interface Signal acquisition from NAMUR, NPN or PNP sensors Calibrated measurement range switching Safe 3-way isolation with 2.5 kV test voltage per EN 61140

RFID cable ties provide an innovative solution for clear and rapid product identification. The nylon cable ties are equipped with an RFID transponder and therefore combine the numerous advantages of a regular cable tie with RFID technology. The ties are especially suited for securing, serialisation, tracking and identification of products in the areas of resource

Corresponding connector housings, surface-mount, size 6B, type 0930006. For contact inserts Han DD 24-pole and Han E/ES 6-pole, with one holding bracket, low design. Surface mount housing with cable entry through the mounting hole and as panel-mount housing with one or two cable exits; Dimensions: a 40 mm, b 52 mm, h 54 mm. Technical

Connector hood housings size 6B, type 0930006../1930006. For Han DD 24-pole and Han E/ES 6-pole contact inserts, with hook lock for one bracket. Technical attributes (type, design, cable exit, screwed cable gland): 1540, low, side, M 20

Heavy-duty connectors, type Harting Han E/ES, HsB und DD. Particularly rugged industrial version. Operating current: 16 A. Operating voltage (insulation group C to VDE 0110): 500 VUC, 600 VUC to UL/CSA. Test voltage: 3.0 kV. Contact resistance: 1.0 mohm. Insulation resistance: min. 10 Gohm. Air gaps/creepage distances to 440 VAC/525 VDC, insulation group C to

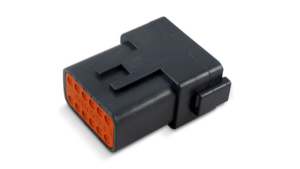

Automotive Power Connector, DT04-12PA-CE02, Deutsch Housing for male terminals, Black, 250 VDC Technical Data Connector Style: Housing for male terminals Body Material: PA GF Primary Locking Feature: Integrated in Housing Cable Exit Angle: 180° Degree of Protection: IP68, IP6K9K Hybrid Connector: No Sealable: Yes Number of Positions: 12 Operating Temperature Range: -55 – 125 °C[-67

Signal lamp, 1.69.010.101/1000, Rafi The IO-LINK product offers you a comfortable start and can be quickly integrated into your existing environment by using standardized M12 connectors. Simply connected and individually parameterized, the control and signaling device opens up countless possibilities. Features Night mode with different brightness levels 4 different flashing modes Can be diagnosed via

Panel pulse counters Hengstler 464 165, 24 VDC, zero reset button 6-digit, with zero reset button. Plug-in counter for any system configuration. Digit height: 2.0 x 4.0 mm. Connections: 9.3 x 1.6 mm round pins. Sampling rate: 25 pps in DC voltage counter mode and 10 pps in AC voltage counter mode. The specified voltage

PCB relays, type TE Connectivity/Schrack SNR. 1 CO for DC voltage, sensitive, wash-proof, monostable, for PCB mounting, terminal grid 1.25 mm and 1.27 mm; Dielectric strength coil/contact: 4.0 kVRMS. Switching voltage: max. 400 VAC. Rated voltage: 240 VAC. Rated current: 6.0 A. Breaking capacity: 1500 VA. Contact material: AgSnO2. Relay protection class RT III. Certifications:

Power relays, type TE Connectivity/Schrack RT1. For DC or AC voltage, automatic soldering-proof; Grid: 3.5 or 5.0 mm. Air gap/creepage distance: min. 10 mm between contacts and coil. Contact material: AgNi 90/10. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 12 or 16 A. Breaking capacity: max. 3000 VA (at 12 A),

Corresponding display and EMC suppression module type 99.80 type: 99.80.0.230.98 for DC applications, wire positive voltage to terminal A1. Module color: blue, LED color: green. Rated voltage: LED plus varistor, 110 to 240 VUC

DC/DC Converter, TSR 1.5-2450E, Traco The TSR 1.5E is a 1.5 Ampere step-down switching regulator. The effective design allows full load operation up to +85°C ambient temperature without the need of any heat sink or forced cooling. Features Highly cost efficient design Efficiency up to 97% Short circuit protection Excellent line / load regulation

Power supply, TXLN 025-124, Traco AC/DC-power supply 24 VDC, 1.1 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment. Features Convection cooled (no-fan) High efficiency up to

Power Relay, 2-1393225-1, Schrack Power Relay Type: Standard, Contact Limiting Breaking Current: 8 A, Coil Magnetic System: Monostable, DC, Coil Power Rating Class: 200 – 300 mW, Coil Power Rating DC: 245 mW, Coil Resistance: 2350 Ω, Product Weight: 8 g, Contact Arrangement: 1 Form C (CO), Contact Current Class: 5 – 10 A,16 A,

Angle wrench, 05022640001, Wera 9 Angle wrenches with plastic sheathing (SPKL) made of grip-friendly round material. All angle wrenches are quickly to hand thanks to their color coding and size marking quickly to hand. Features Hex key set for hexagon socket screws Angle wrenches are quickly at hand due to their size marking Abrasion-resistant handle

Control unit box, 1.24.200.001/0000, Rafi The IO-LINK product offers you a comfortable start and can be quickly integrated into your existing environment by using standardized M12 connectors. Simply connected and individually parameterized, the control and signaling device opens up countless possibilities. Features Night mode with different brightness levels 4 different flashing modes Can be diagnosed

Push button without plug connector: Capacitive touch technology in combination with an OLED Display. Four softkeys and one touch button. Functions: rotating, swiping, horizontally or vertically, and tapping. Upload of own pictures in png format and animated gif videos via USB Interface. No operation system software necessary for the operation of the CDS1, only the

Power supplies, type Phoenix Contact TRIO POWER. Primary clock mode, suitable for rail mounting an wiring in parallel, particularly suited for applications in series mechanical engineering, international usage due to extended-range input and international approval package, high degree of operational reliability through MTBF of 500000 h, third minus terminal on secondary side for simple grounding,

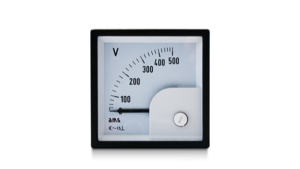

Display instruments, type AMS SQ 72 DE. Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square control panel mount housing to DIN 43700. Black 72 x 72 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 68 x 68 mm Type: 500 V

Emergency stop pushbutton, metall-mushromm, illuminated, series RAFIX 22 FSR Tamper-proof to DIN EN ISO 13850. Type: 1.30.283.111/0300 Form of lens: conical mushroom form Color of lens: red Form of collar: round Mushroom Diameter: 37.5 mm Mounting hole: 22.3 mm Mounting: threaded rings Contact function: latching Reset: by pulling Illuminability: yes, window white Degree of protection

Push button, 1.30.270.001/2601, RAFI Illuminated pushbutton, flat bezel, round collar, momentary contact function, frontring black, bezel blue Technical Data Type of mounting: Threaded ring Collar shape: round Installation diameter: 22.3 mm Installation depth: 9.2 mm Installation height: 9.85 mm

Residual-current circuit breakers, type ABB Stotz F 202/204. For installation on mounting rails to EN 60715, 35 mm, suitable for AC fault currents and pulsed DC fault currents, compliant with DIN VDE 0664 Part 1; Surge current strength: 250 A (pulse shape 8/20 µs). Short-circuit strength: 10 kA with primary fuse gG 100 A (or

Safety module, XPSAC5121, Schneider Electric This safety relay is used to monitor emergency stop/stop and safety position switches. An input for the feedback circuit and a start button is provided. The device meets the requirements of safety level up to PL e in category 4 and SIL 3. Typical applications: STO or stop category 0.
